The Future of Cockpits: Exploring NASA's Windowless Design with the X-59

NASA's X-59 aircraft recently made headlines by breaking the sound barrier, a significant milestone for the future of commercial supersonic flight. However, this experimental plane is also a catalyst for exploring a radical redesign of cockpit technology that could eliminate traditional windows.

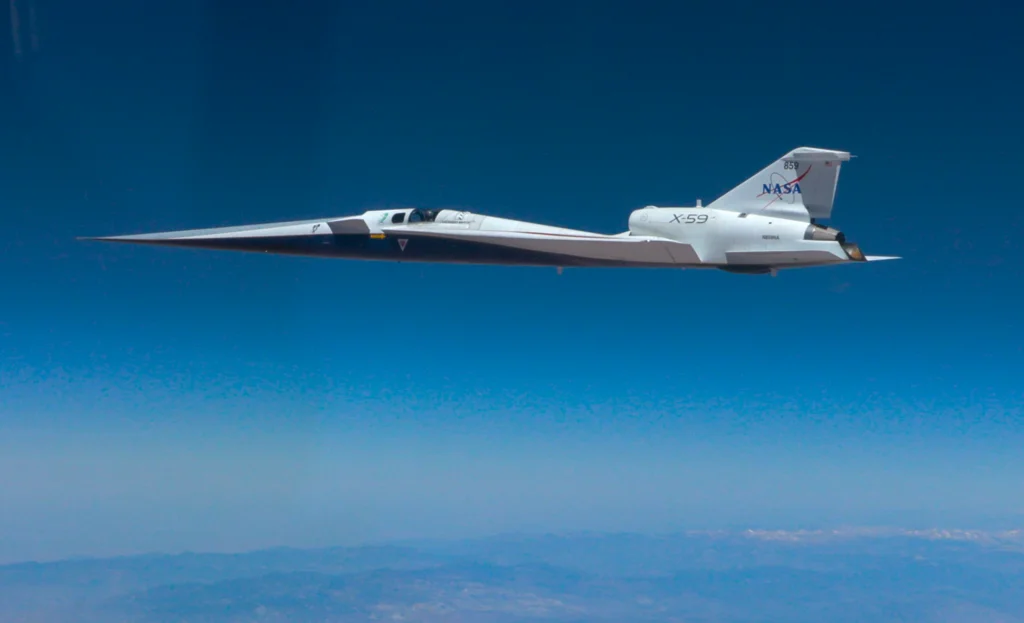

To reduce the disruptive sonic booms associated with supersonic speeds, NASA and Lockheed Martin Skunk Works engineered the X-59 with an elongated nose that disrupts shock waves. This aerodynamic modification, while effective, obscures the pilot's forward view. In place of a standard windshield, the pilot relies on the eXternal Vision System (XVS), a sophisticated 4K display that pulls images from dual high-resolution cameras—one positioned atop the aircraft and another beneath its fuselage.

Unlike the theoretical ideas presented in the past, the X-59 serves as a real-world proof of concept, demonstrating that pilots can safely navigate using a windowless setup, as confirmed by NASA. According to Peter Coen, the Quesst mission integration manager, the risk associated with this technology is comparable to flying in poor visibility conditions that a conventional jet would experience.

“It gives you a very good view,” Coen stated regarding the XVS. “The view is as good as you get with your eyeballs, but you can also take information from other sensors, like radar or infrared technology, and integrate that with the display. So you pick up traffic a lot faster than you would if you were just trying to gaze through the murk.”

While windowless cockpits are already present in some military jets, they haven’t gained traction in commercial aviation. Past attempts at introducing such concepts, including a patent for a windowless cockpit by Airbus in 2014, indicate an interest in the technology. The delay in adoption may be partially attributed to advances in display, camera, and computational technologies that make such systems more feasible and reliable for real-world application.

As Coen noted, NASA and Boeing explored the XVS concept years ago, but the technology wasn't mature enough for flight applications at the time. With significant advancements since then, he forecasts improvements in these systems will continue, particularly for supersonic aircraft, where traditional cockpit designs face unique challenges due to their elongated noses.

Although the X-59 isn't entirely devoid of windows—it features a small canopy and side windows for backup visibility—the absence of a front windshield represents a noteworthy shift in design philosophy.

Challenges and Considerations of Windowless Cockpits

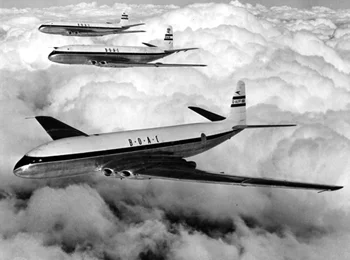

The idea of windowless cockpits ties closely to arguments regarding efficiency, safety, and design. Guy Gratton, a flight instructor and professor at Cranfield University, underscores that traditional aircraft frameworks are ripe for re-evaluation. Windows introduce structural vulnerabilities, as exemplified by earlier models like the de Havilland Comet, which suffered mid-air breakups due partly to their square windows.

Moreover, windows are not only a potential weak point but also add unnecessary weight and cost in manufacturing. Gratton advocates for a shift towards robust camera systems that could eradicate many blind spots and enhance situational awareness. This transformation prompts a question about the potential to reposition cockpits within aircraft for better aerodynamics, ultimately leading to sleeker designs.

Yet, introducing windowless designs into commercial aviation presents substantial challenges. Safety concerns with such a fundamental change are paramount, especially when dealing with hundreds of passengers. Public perception also cannot be underestimated—many passengers and pilots alike may be wary of flying in planes without conventional sightlines.

Gratton also cautions that the reliability of camera technology must match or exceed current standards for windowed cockpits. A traditional windshield serves its purpose well unless it breaks; thus, deploying multiple cameras and screens would become crucial for maintaining safety and functionality.

Regulatory bodies, such as the FAA and the European Union Aviation Safety Agency, emphasize scrutiny of any new cockpit technologies to ensure they meet stringent safety standards. The FAA mandates clear visibility from flight deck windows, and any proposed systems would undergo rigorous evaluation to confirm their safety and reliability.

Tangible steps towards this futuristic cockpit design may not be far off. Gratton references the emergence of Head-Up Displays (HUDs) in modern aircraft, such as Boeing’s Dreamliner and Airbus’s A350, as an indicator of the industry’s openness to new technology. He anticipates that within the next 10 to 20 years, windowless cockpits could become an accepted feature, particularly if these systems effectively integrate and present information to pilots.

Ultimately, the aviation industry may be on the brink of a transformation in cockpit design that prioritizes both safety and efficiency. The success of the X-59 and its operating principles could signal a new era in air travel, one that embraces innovation while addressing the fundamental challenges of traditional flight operations.
